Hacking the MGCD (Part 2)

The Dreamcast version of the MGCD has a similar issue to the PS2 version, of not being exactly JAMMA plug-in play. The last two edge pins on either side of the connector are mapped to joystick buttons rather than grounds (per the JAMMA spec). If these are grounded when you power up the MGCD, it will not accept any inputs from the joystick or other buttons, which is a pretty bad design flaw. So like the PS2 MGCD in Part 1, a simple adapter is needed to isolate these from the edge connector. If you actually need to use buttons 5 & 6 from both players, you can manually connect wires to the adapter and run them up to your control panel.




Above we have the MGCD, with edge adapter, mounted to a Dreamcast, and ready to be connected to any 15khz JAMMA cabinet. I should mention that the same hack used to disable the timer overlay on the PS2 version also works on the Dreamcast version. Also note this MGCD comes with an extra cable to attach a DC memory unit.

If you are like me, you relish the fact that the Dreamcast can output high resolution (31khz/VGA) natively, and I happen to have some JVS/JAMMA cabinets with tri-sync monitors. So you might think that simply using a DC-VGA adapater in place of the MGCD AV cable would work. Unfortunately its not that easy. The MGCD seems to stop working if there is no input video sync present at the MGCD AV connector. So a small hack is required to the DC-VGA box.

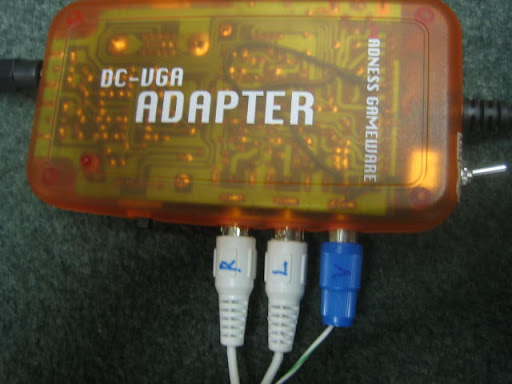

Shown above is my DC VGA box, which has its Composite Video Output connector modified to also be connected to composite sync, which is pin #10 on the Dreamcast AV input cable. You do not need to disconnect composite video pin #13, having both connected to the RCA jack at the same time will work fine. The blue video sync plug, shown above, is then soldered directly to the MGCD AV connector input pins (as shown below), along with Left and Right sound outputs from the VGA box.




So now I have a choice of using the MGCD amplified mono sound out of the PCB, or using the DC-VGA box's stereo headphone output if my cab has its own stereo amplifier. BTW: only the "Madness Gameware" or "DC Blaze VGA" box has headphone output and volume controls.

Lastly, you may have noticed a toggle switch on my Madness Gameware VGA box, this is a non-related hack I wrote about back in 2002 to force it into either 15khz RGB or 31khz VGA output. This is not needed for the MGCD, since you can get great 15khz RGB output by using the original MGCD AV cable.



So, below is the completed MGCD with Dreamcast VGA and stereo output connectors ready to go on a JVS/JAMMA cab.


13 comments:

  1. Nice mods!!!!
    Thanks for share it on your blog! :)
    (sorry for my english....)

    ReplyDelete
  2. Hi, thanks for your article, I have been looking for something like this for afew days.
    My only concern with having to mod pins 27 + 28 is when I go to plug in a normal jamma board, if I have disconected the last two pins, will the jamma board not work properly??
    Your advise would be appreciated.

    Thanks
    Lee

    ReplyDelete
  3. Hi Lee, it depends upon your cabinet ground wiring, and also the PCB in question.

    In short, the jamma spec says those last two pins on either side need to be ground. So some PCBs may be fine by internally sharing the power supply ground pins, while others may use those last pins as separate player control grounds.

    I'd recommend keeping things to the jamma spec if possible. Its not to much trouble to create a little adapter like I did to lift those pins.

    ReplyDelete
  4. well done, thank you. do you know where to buy a mgcd nowadays?

    ReplyDelete
  5. mgcd's are getting hard to find now. They occasionally pop up on arcadecontrols.com and neo-geo.com trading forums. Some Hong Kong arcade distributors (like Excellentcom) sell "timer boards" for consoles, although I don't know if they have dreamcast ones specifically.

    ReplyDelete
    Replies
    1. I know this is a very old post but there’s not a lot of stuff out there on the MGCD. I just picked one up myself to put in my Sega Astro. Could I essentially buy a jamma extension and make adjustments on that?

      Delete
    2. Certainly, using a Jamma extension cable, and cutting wires to pins 27+28 on either side of the jamma connector, will do in place of the soldered fingerboard I made in the pictures above.

      Delete
  6. I have made a fingerboard adapter for my mgcd dreamcast and have left pins 27 and 28 open. Coin I get when I press Coin but my joystick does not work and my buttons do not work. is anyone who knows what wrong can be?

    ReplyDelete
  7. @Arcade Fever:

    Hi Whats up. I recently got my hands on a broken MGCD board.
    EEPROM above the 8pin DIP switches is fried.

    Would you be willing to sell your's?

    Greets

    ReplyDelete
  8. @Lag_Switcher I have one for sale.

    ReplyDelete
  9. NECROBUMP! I just got an MGCD from a friend and it seems to work. I still have to do the pin modification to get the arcade controls working, but In my testing, using a controller works just fine. My question is - I lose sound after about 5 minutes. Just completely cuts out. If I shut off the cab and turn it back on, poof - sound is perfect again. What could possibly cause this?

    ReplyDelete
    Replies
    1. Edit - I got some help on reddit and figured it out! Yay!

      Delete
  10. Ah, for some reason google turned off my comment notifications. The sound will cut off after the credit timer is over, so setting the timer to maximum (256 minutes) should help, but sounds like you already figured it out. :)
